Crown races for Cane Creek headsets fit a variety of lowers and crown race seat diameters.
41/30 1-1/8
Integral mold seals keep out the elements
Compatible with 10-, 40- and 110-Series headsets and backwards compatible with S and XX Series
Compatible with 30mm (1-1/8") straight steerer tubes
Compatible with 41 and 42mm lower headset bearings
Lightweight aluminum construction
47/30 1-1/4 to 1-1/8
Integral mold seals keep out the elements
Compatible with 10-, 40- and 110-Series headsets and backwards compatible with S and XX Series

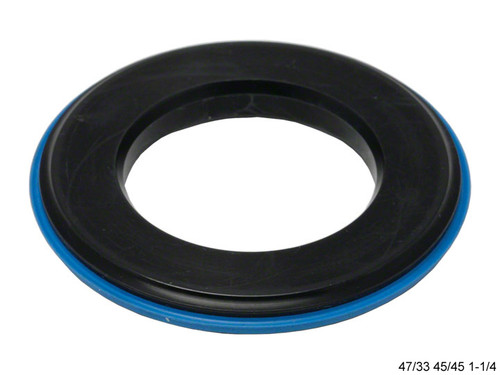

47/33 45/45 1-1/4
Compatible across 10, 40 and 110 Series headsets and backwards compatible with S and XX Series
All crown races feature integral molded seals
52/30 1-1/8
Compatible with 10-, 40- and 110-Series headsets and backwards compatible with S and XX Series
Integral mold seals keep out the elements
Compatible with 52mm lower headset bearings
Compatible with 30mm (1-1/8") straight steerer tubes
Lightweight aluminum construction
Allows the installation of a straight steerer fork without changing out the headset lower
52/40 1.5
Compatible with 10-, 40- and 110-Series headsets and backwards compatible with S and XX Series
Integral mold seals keep out the elements
Compatible with 52mm lower headset bearings
Compatible with 40mm (1-1/2") tapered steerer tubes
Lightweight aluminum construction
Specifications
Part Numbers
41/30 1-1/8:BAA0170A
47/30 1-1/4 to 1-1/8:BAA0842A
47/33 45/45 1-1/4:BAA0699A
52/30 1-1/8:BAA0463A
52/40 1.5:BAA0173A
