Born for Speed. Perfected for Track.
The T1Rs marks Colnago return to the velodrome. Its frame and its components have been designed and engineered to minimise air resistance at high speeds and to reduce power losses, thanks to its exceptional stiffness.
Endurance/sprint set-up
The sprint/endurance setup offers maximum adjustability and precision handling through compatibility with standard 31.8 mm handlebars.

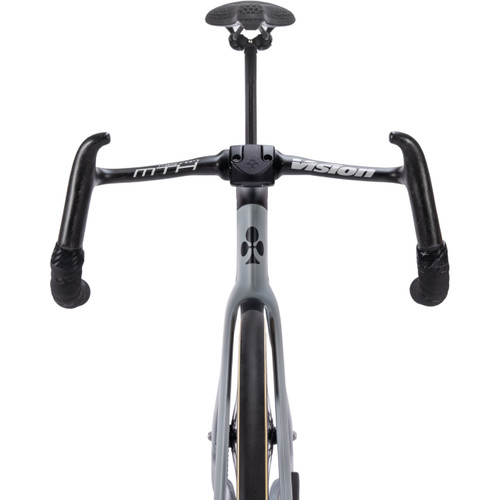

Timetrial/pursuit set-up
The TT/pursuit setup features a monocoque carbon stem and base bar unit, engineered for maximum stiffness and seamless aerodynamic integration
The Colnago T1Rs has been meticulously designed and engineered to deliver uncompromising performance in the velodrome. Every line, every surface, and every component serves a single purpose: to minimize aerodynamic drag and convert every watt of power into pure forward motion. Track cyclists generate immense power, and the T1Rs is designed to handle it all — minimising flex and ensuring that every watt of effort is transferred to the track.
Details:
- Series: T Series
- Model: T1Rs
- Frame kit:
- Frame (material): Monocoque carbon.
- Fork (material, section notes): Carbon Dual Crown fork
- Headset: Included
- Seatpost: Colnago Track Aero carbon seat post. Adjustable offset.
- Seatpost clamp: Ritchey Wcs Alloy 1-Bolt Rail Clamp (included)
- Wheel hubs width
- Front hub width 65 mm – 2 bolts (M6)
- Rear Hub width 100 mm – 2 nuts (M10)
- Handlebar
- Not included, to be requested separately:
- Kit endurance/sprint: spacers and stem, compatible with 31.8mm diameter, available in 125-150-175mm sizes.
- Kit pursuit: Basebar TT/track low stack, Adjustable extension kit
- Bottom bracket: T47 Asymmetric
- Maximum chainring dimension: 72 Teeth
- Maximum tyre size: 28 mm
