Knog Blinder E 1300

Blinder E 1300 Front E-Bike Light

The Blinder E 1300 front e-bike light is the ultimate companion for cyclists seeking unparalleled performance and safety on urban streets and beyond. Designed with precision and durability in mind, this powerful 1300 lumen light sets a new standard in e-bike illumination, while the bar mounted button provides easy access to control your light modes on the move.

No Ordinary Front E-Bike Light

Designed to deliver uncompromising performance and reliability, this sleek and powerful light ensures you stay visible and safe on the road.

• Powerfully bright 1300 lumen road focused beam.
• Connects into your e-bike motor/battery system (we recommend a bike shop does this).
• Compatible with e-motors from all major brands including; Bosch, Brose, Shimano Steps, Yamaha and more
• Control the 6 light modes via the hardwired handlebar remote.
• 100% waterproof with an IP67 rating.
• Intelligent button with backlit LEDs indicate high and low beam modes
• Includes vibration-resistant and secure handlebar mounting that is quick and easy to install

Light Modes

• High Steady: 1300 @ 11W
• Medium Steady: 600
• Low Steady: 350
• Steady Pulse: 600
• Strobe: 600
• Eco Flash: 550

What's In The Box

• Light Head - 1300 Lumens
• Handle Bar Remote

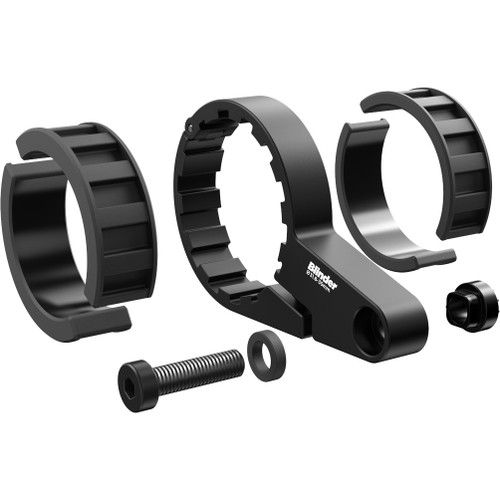

• Handlebar Mount & Mounting Hardware
• E-Bike Cable - 1200mm
• Shims - 31.8mm / 35mm - For the perfect bar fit.

How to Install

Knowg's e-bike lights are powered by the motor of your e-bike and need to be installed manually. This is a simple task for a trained e-bike professional and Knog suggest you have them handle the installation as it may require some disassembly of the bike and motor (depending on the battery make and model) and additional wiring to connect the light to the motor. To confirm the compatibility of your e-bike motor you can reference Knog's E-Bike Light Compatibility Chart or you can check the manufacturers specifications.

Brilliant Performance

Engineered with meticulous attention to detail and durability

Safeguarded from the Elements

Industry Leading protection against water and dust with the IP67 rated waterproofing.

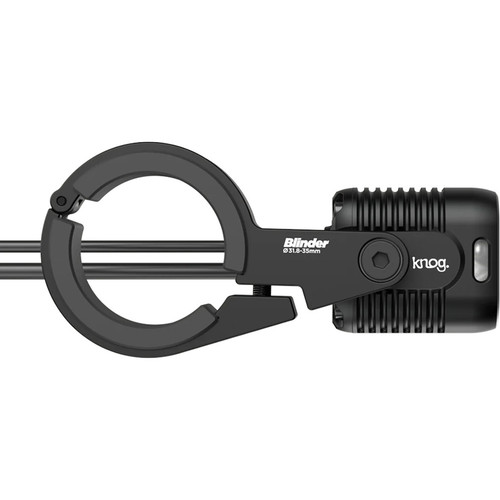

Rock-Solid Mounting

The vibration-resistant, CNC machined aluminium handlebar mounting is perfectly constructed with an anodised hard coat to ensure a smooth ride no matter the weather.

Magnetic Cradle

Flexible handlebar mounting of remote using the magnetic cradle for safe and user-friendly adjustment while in motion.

Gold Plated DC Connector

Knog's proprietary gold plated DC Connector guarantee a robust cable setup with advanced conductivity.

Specifications:

• COMPATABILITY: Knog External Battery/E-Bike
• COMPATIBLE E-MOTORS & CONNECTIONS: Bosch, Brose, Shimano Steps, Yamaha and more - consult your manufacturers specification
• LENS OPTICS: Polycarbonate, 3 x spot optics & 3 x wide angle optics
• BEAM ANGLE: 23°
• MAX LUMEN OUTPUT: 1300 lumens
• LIGHT MODES: 6
• AERO BAR COMPATIBLE: No
• LOW BATTERY INDICATOR: No
• FITS BARS: 31.8mm - 35mm
• LIGHT SOURCE: 6 x LEDs
• OPERATION: External Button Remote/e-bike control
• WEIGHT: 90 g / 3.2 oz
• DIMENSIONS: H: 32 mm x W: 32 mm x L: 49.5 mm
• WATERPROOF: Yes, IP67 rating
• CHASSIS / MOUNT: Machined 6061 Aluminium
• OPERATING TEMP: -20 to 50 °C / -4 to 122 °F
• STRAP / MOUNT MATERIAL: 6061 Aluminium with medical grade silicone shim
• CABLE & CONNECTORS: 150mm Fly Lead, 1200mm E-Bike Extension Cable
