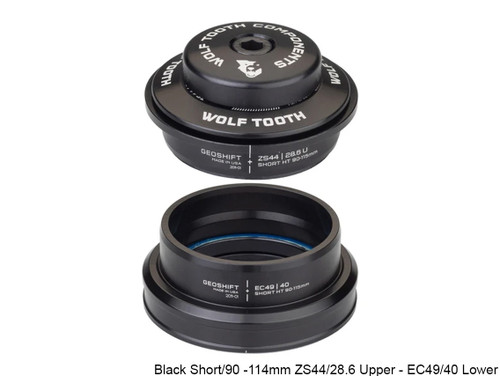

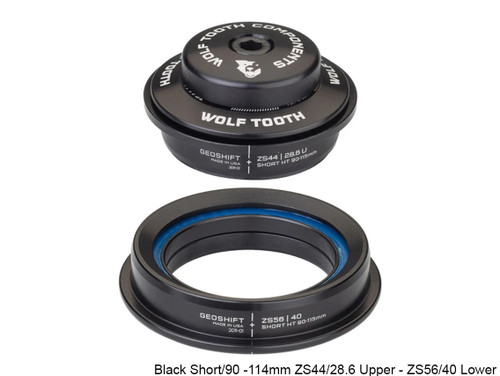

Wolf Tooth GeoShift Performance Angle Headset

Adjust the geometry of your bike by changing the head tube angle by 1 with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1 to make for a slacker geometry for added stability on fast descents, or by +1 by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Their Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Note: the EC44 Upper/EC44 Lower is the new design of the ZS44 Upper/EC44 Lower and can be used in its stead. This new design was implemented because the constraints of a head tube with 44mm upper and lower require the upper bearing to be housed above the head tube (as opposed to inside the head tube as it was with the ZS44 upper design) for optimal performance.

Features

Upper Assembly

Ultralight Stem Cap With Integrated Spacer plus an aluminum bolt and a star nut

O-ring seal prevents water intrusion around the steerer tube

Custom-molded upper lip seal provides additional protection for upper bearing

Optional shim washers if needed

Lower Assembly

Custom-molded dual-lip seal on the crown race to protect lower bearing in the toughest weather and trail conditions

Service and additional parts available

Compatibility

Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

Consult measurement guide determine which headset will fit your bike.

Specifications
