The most advanced DT Swiss aero disc brake wheelset for new top speeds while handling the bike safely anytime.
The all-round aero wheelset with excellent performance for various riding fields.

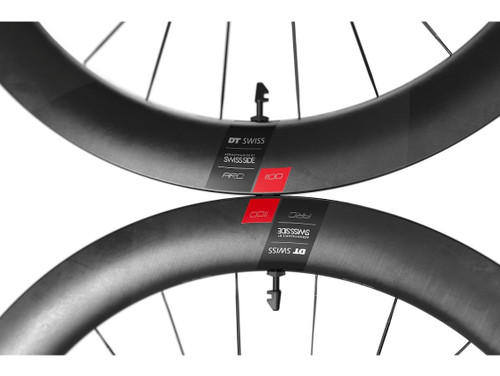

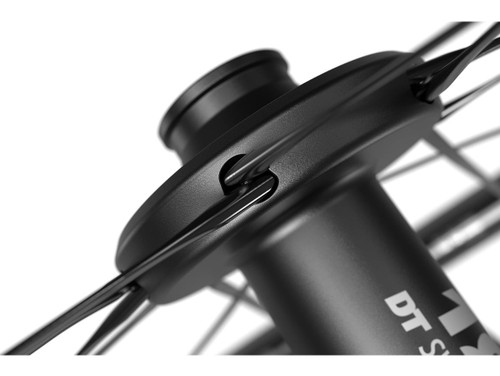

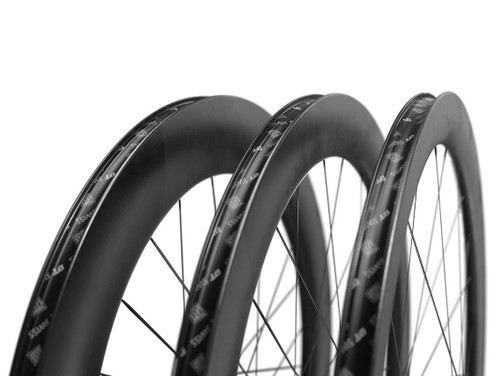

The latest generation of ARC 1100 DICUT wheelswas developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimisation. Consequently, the new Aero+ rim profile minimises both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind. Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the sleek 180 DICUT hub including ultra-light running SINC ceramic bearings.
Technologies
Aero+ -The symbiosis of drag, handling and efficiency.
Ratchet Exp
Sinc Ceramic -At DT Swiss we believe that the difference is in the detail. SINC ceramic ball bearings are precisely based on such details. Thanks to the optimization of these details, a DT Swiss wheel with a SINC upgrade simply means that you will be ahead of the field, your friends or setting new personal bests.
Tubeless -All DT Swiss wheelsets are tubeless compatible and the ASM versions come tubeless ready, equipped with tubeless tape and valves.
Bearing -DT Swiss hubs are designed to function optimally once installed in a bicycle. To achieve this, the clamping force created by the wheel mounting system must be taken into account when constructing a hub. Learn how to ensure the optimal rotating property of the ball bearings and discover why DT Swiss does not offer hubs with adjustable bearing clearance.
Specifications
HUB Type | 180 with Ratchet EXP 36 |
---|---|
Rim | Carbon, Hooked / Crotchet tubeless TC |
Rim Height | 62mm |
Spokes | DT Aero Comp II T-Head |
Front | Rear - Shimano | |
---|---|---|
Net Weight | 776g | 900g |
Recommended System Weight Max. | 110 kg | 110 kg |
ASTM Classification | 1 | 1 |
Material | Carbon | Carbon |
Rim Joint | - | - |
Tyre Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
Valve Hole | Presta | Presta |
Rim Diameter | 29" / 700C | 29" / 700C |
Rim Height | 62mm | 62mm |
Decal Type | Waterslide | Waterslide |
Inner Width | 20mm | 20 |
Outer Width | 27mm | 27mm |
Hub Type | 180 | 180 |
Axle System | 12 mm Thru Axle | 12 mm Thru Axle |
Bulti-In Dimension | 100mm | 142mm |
Brake Interface | Disc Center Lock | Disc Center Lock |
Freehub Body | - | Shim. RD. 11SP Light S ASLS11 (mounted) |
Freehub System | - | Ratchet EXP 36 |
Spokes Left | DT aerolite II t-head | DT aerolite II t-head |
Spokes Right | DT aerolite II t-head | DT aero comp II t-head |
Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) |
Nipples | DT Pro Lock hidden aluminum | DT Pro Lock hidden aluminum |
Inclusive | Tubeless tape 23 mm TL valve alu black 49-65 mm valve guard wheel bag | Tubeless tape 23 mm TL valve alu black 49-65 mm SRAM XDR Road freehub body kit valve guard wheel bag |
