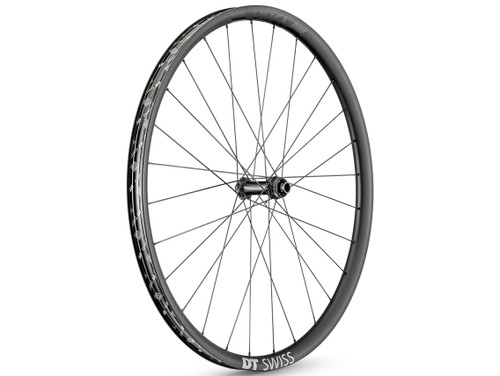

The pinnacle of Enduro wheels - where carbon meets ceramic - where nimble meets stable.
A carbon structure optimised for impact resistance, a reinforced flange and the ideal resin-carbon fiber ratio make the EXC 1200 SPLINE the benchmark in the enduro sector. The rim's inherent strength allows the use of extremely lightweight Aerocomp and Aerolite spokes and generates optimum wheel stiffness. The heart of this wheel is a 180 STRAIGHTPULL hub with smooth-running SINC CERAMIC bearings and the newest RATCHET EXP freehub system.
Technologies
Tubeless -All DT Swiss wheelsets are tubeless compatible and the ASM versions come tubeless ready, equipped with tubeless tape and valves.
Ratchet
Engagement Angle -A hotly discussed topic in the market right now - engagement angle! What is the engagement angle, how does this angle affect riding performance and is the conventional wisdom "the more the better" really always better?
ProLock -Pro Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and starts to harden. Re-truing the wheel is still possible after the adhesive has hardened completely, with only a minimal decrease of its thread-lock function.
Bearing -DT Swiss hubs are designed to function optimally once installed in a bicycle. To achieve this, the clamping force created by the wheel mounting system must be taken into account when constructing a hub. Learn how to ensure the optimal rotating property of the ball bearings and discover why DT Swiss does not offer hubs with adjustable bearing clearance.
Specifications
Front | Rear | |
---|---|---|
Net Weight | 779 g | 891 g |
Recommended System Weight Max. | 130 kg | 130 kg |
ASTM Classification | 4 | 4 |
Material | Carbon | Carbon |
Tyre Interface | Hookless tubeless TSS | Hookless tubeless TSS |
Valve Hole | Presta | Presta |
Rim Diameter | 29" 700C | 29" 700C |
Decal Type | Waterslide | Waterslide |
Inner Width | 30 mm | 30 mm |
Outer Width | 36 mm | 36 mm |
Hub Type | 180 | 180 |
Axle System | 15 mm Thru Axle | 12 mm Thru Axle |
Bult-In Dimension | 110 mm Boost | 148 mm Boost |
Brake Interface | Disc Center Lock | Disc Center Lock |
Freehub Body | - | SRAM XD MTB (ASRAM) (mounted) |
Freehub System | - | Ratchet EXP 36 |
Spokes Left | DT aerolite Straightpull | DT aerolite Straightpull |
Spokes Right | DT aerolite Straightpull | DT aero comp Straightpull |
Spokes Pattern | Three-cross (1:1) | Three-cross (1:1) |
Nipples | DT Prolock Squorx ProHead alu | DT Prolock Squorx ProHead alu |
Inclusive | Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB tools wheel bag | Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB Shim Micro Spline freehub kit tools wheel bag |
